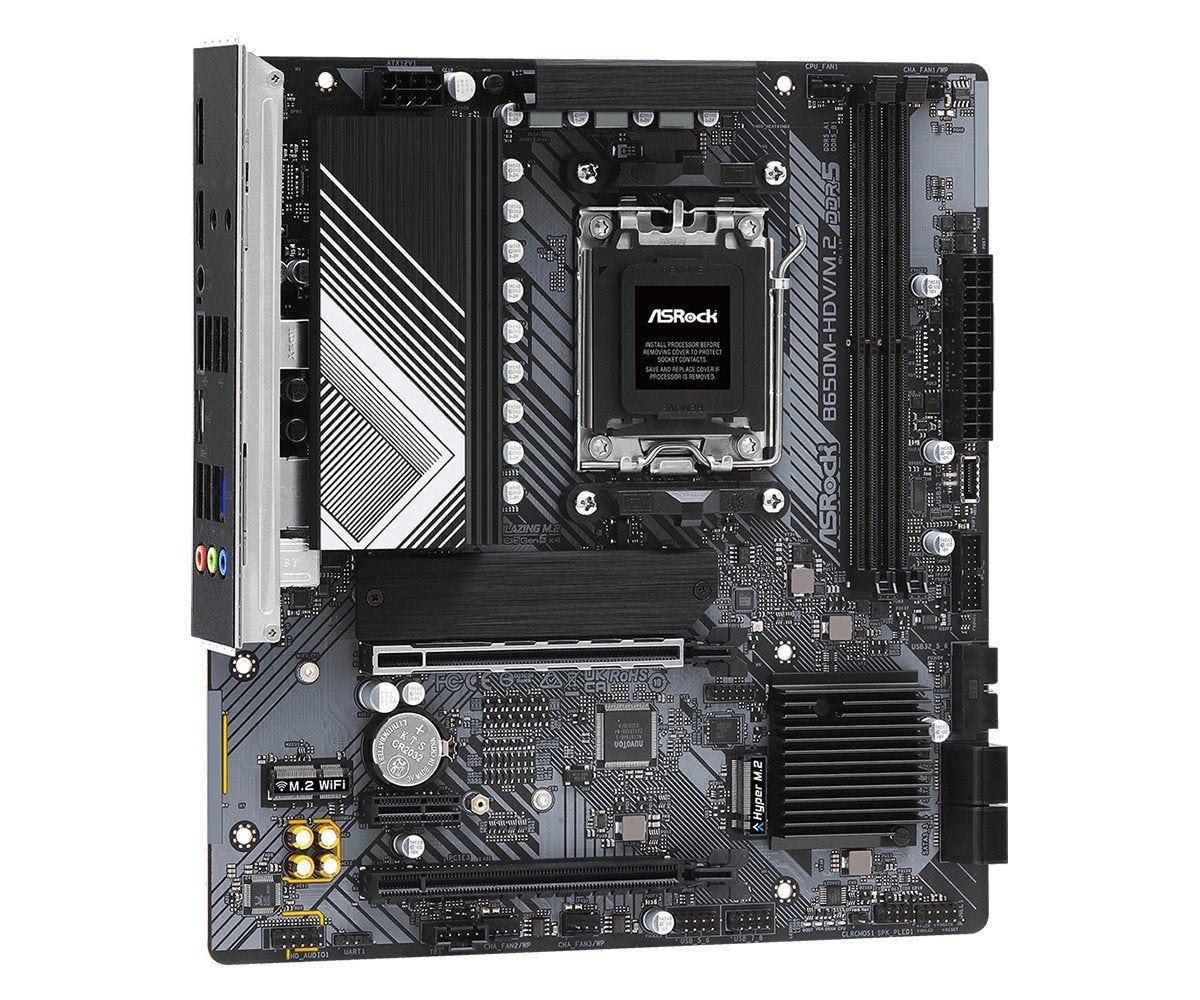

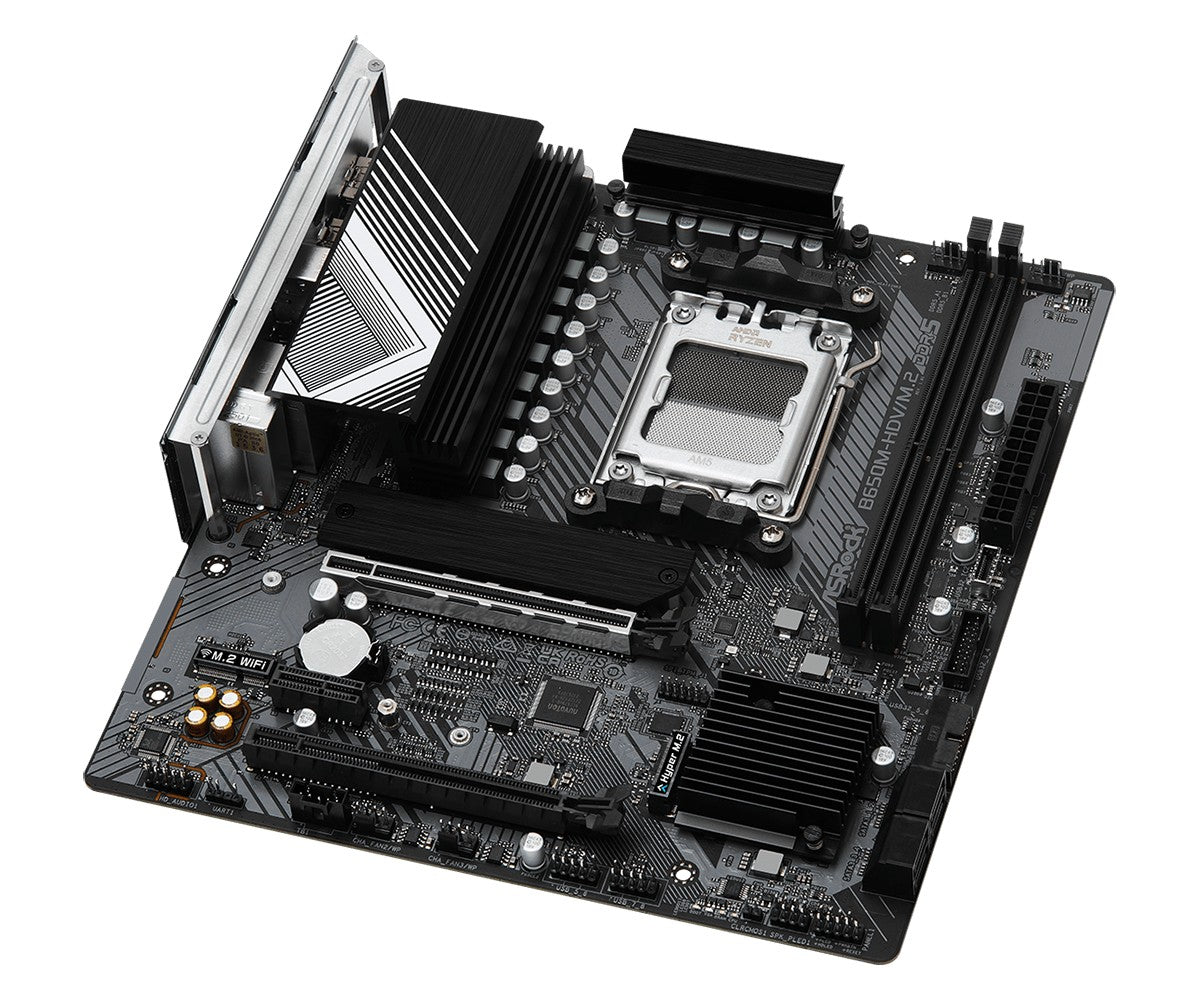

Placa de baza ASRock B650M-HDV/M.2 Micro ATX Socket AMD AM5 AMD B650
Placa de baza ASRock B650M-HDV/M.2 Micro ATX Socket AMD AM5 AMD B650
Preț obișnuit
649,00 lei RON
Preț obișnuit
Preț redus
649,00 lei RON
Preț unitar
pe
Taxe incluse.
Taxele de expediere sunt calculate la finalizarea comenzii.
Nu am putut încărca disponibilitatea pentru ridicare
- Conditie: Nou
 Retur gratuit in 30 de zile
|
Descriere Placa de baza ASRock B650M-HDV/M.2 Micro ATX Socket AMD AM5 AMD B650

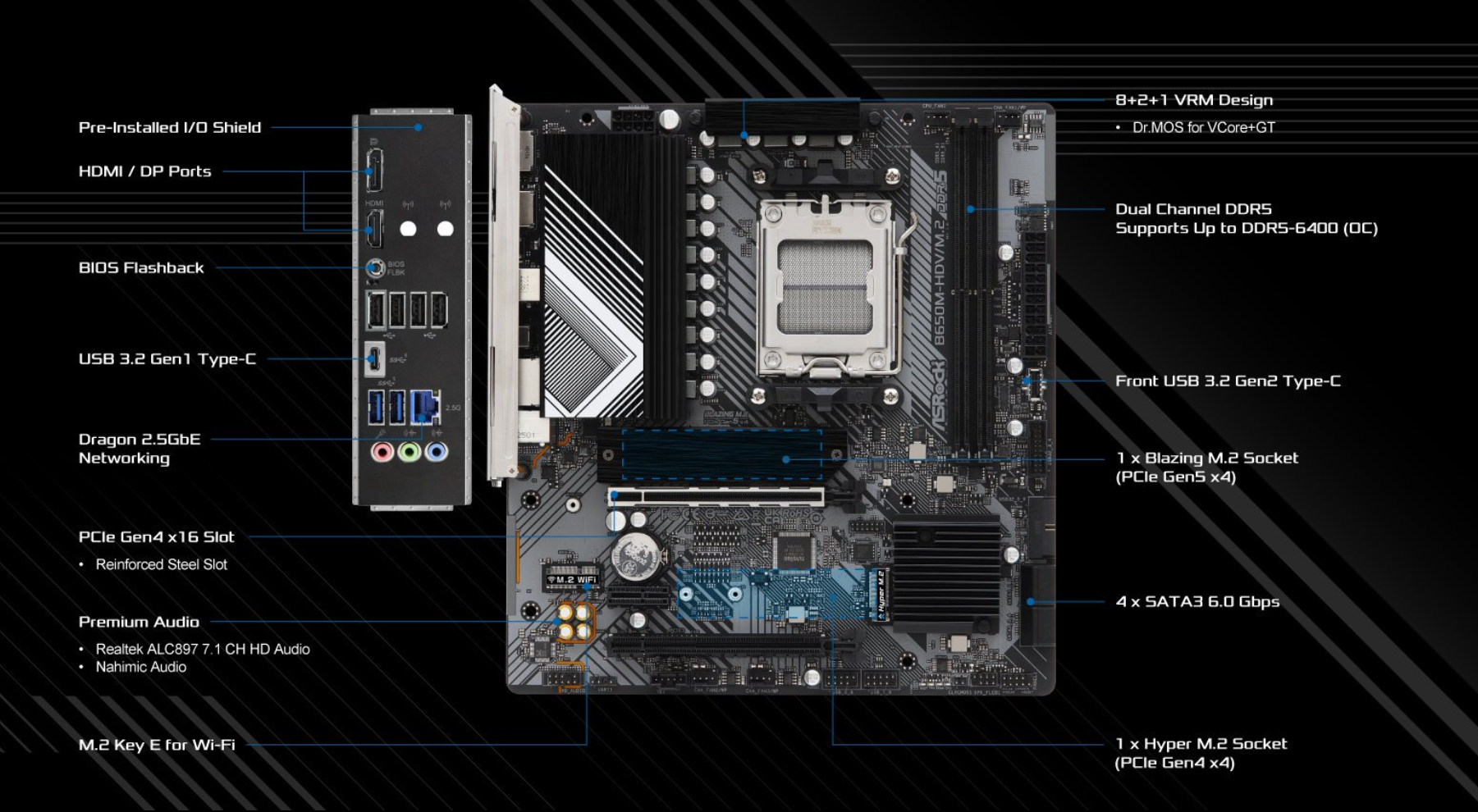

Optimized VRM Design
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
DDR5 Memory with Protection Circuit
Due to the unique electrical architecture of DDR5 DIMM, there’s a high risk of damaging the memory module if AC power isn’t disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module.
Reinforced Steel Slot
[PCIe 4.0 Version]
The reinforced steel slot is capable of supporting PCI Express 4.0 standard. The various benefits include:
✔ Extra anchor points
✔ Stronger latch
✔ Ensure signal stability
✔ Make sure heavy graphics cards to be well-installed.
✔ Extra anchor points
✔ Stronger latch
✔ Ensure signal stability
✔ Make sure heavy graphics cards to be well-installed.
![Reinforced Steel Slot [PCIe 4.0 Version]](https://www.asrock.com/mb/features/Reinforced%20Steel%20Slot-B650M-HDVM.2.jpg)
Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
PCIe Gen5 Blazing M.2
The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.
Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
Front USB 3.2 Gen2 Type-C
Front USB 3.2 Gen2 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.
*Wi-Fi module is not included.
Specificatii
Procesor
| Format | microATX |
| CPU Socket | AM5 |
| Chipset | AMD B650 |
| Procesoare suportate | AMD 7000 Series Processors |
memorie
| Capacitate maxima memorie RAM | 96 GB |
| Frecventa memorie (MHz) | 7200(OC) MHz |
| Suport Dualchannel | Da |
| Sloturi memorie | 4 |
conectivitate
| Audio integrat | Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC |
| LAN integrat | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG) |
| Conectivitate | 1 x RJ-45 2 x Audio Jacks 1 x HDMI port 1 x Display Port |
| Conector sursa (pini) | 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) |
sloturi
| Sloturi PCI-E x16 | 1 x PCIe 4.0 x16 |
| Sloturi PCI-E x1 | 2 |
altele
| Dimensiuni (L x W) (cm) | Micro ATX - 24.4 x 22.5 cm |
